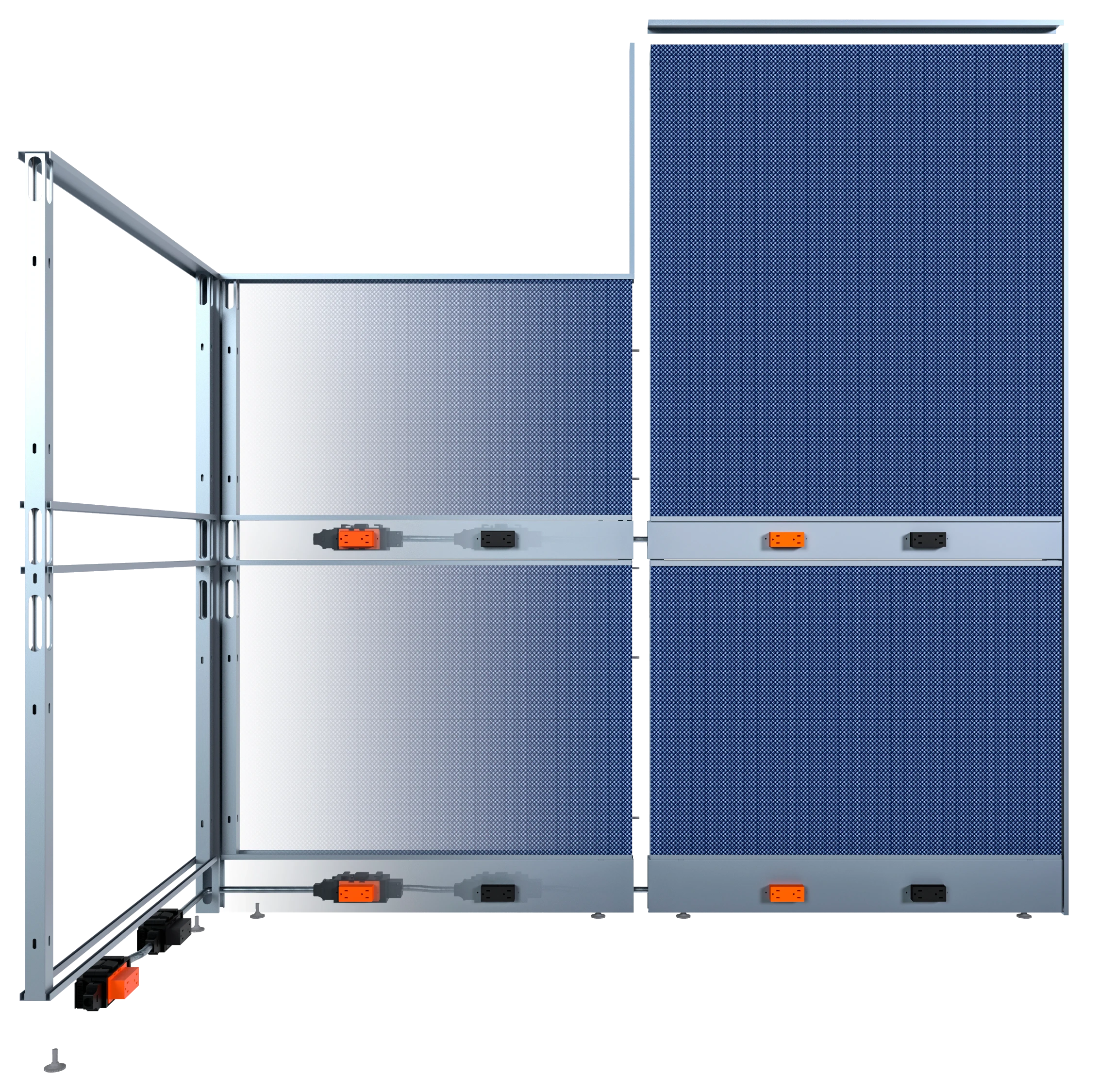

The Optimus system integrates power and data connectivity through a built-in raceway at the base of the panels, ensuring organized cable management while keeping the workspace visually clean.

Its optimized design delivers easy access to power and data at the work surface level, enhancing functionality and aesthetics without added complexity.

Request a quote

Features

Bodies
• Posts fabricated from 18-gauge cold-rolled sheet metal with perforations to receive support elements. • Perforations allow routing of power and data conductors between partitions. • “C”-shaped frame constructed from 18-gauge cold-rolled sheet metal. • Top cover made from 20-gauge cold-rolled sheet metal, welded to the upper beam for structural reinforcement.
Duct System
Lower Duct • 5" height × 2" depth. • Constructed from 20-gauge cold-rolled sheet metal. • Designed to house electrical harnesses. • Secured by an omega bracket in 20-gauge cold-rolled sheet metal. • Includes threaded height adjustment system (up to 1" maximum adjustment). Intermediate Duct • Fabricated from 18-gauge cold-rolled sheet metal. • Includes removable access doors for service management.
Panels / Sections
• Panels manufactured from 4.5 mm MDF. • Available upholstered in fabric, low-pressure laminate, high-pressure laminate and wood veneer finishes.
Finishes & Textures
• All metal components undergo a cleaning and phosphate degreasing process to ensure paint adhesion and corrosion resistance. • Finished with powder-coated epoxy paint in standard line colors for durability and visual consistency.

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

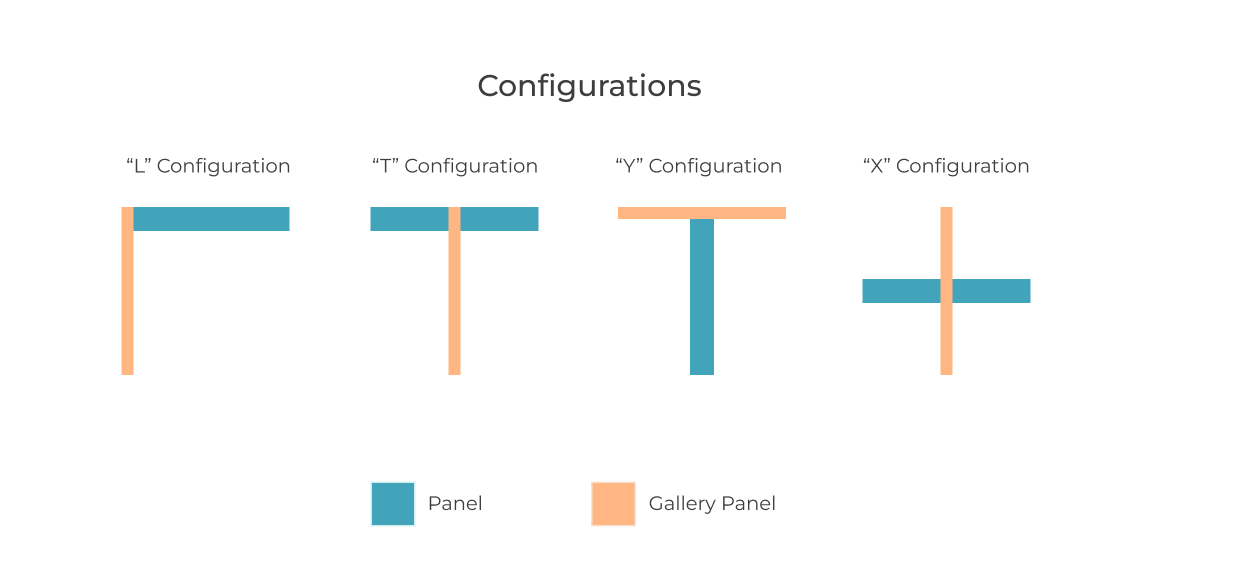

Gallery Panels offer an affordable, elegant way to add separation and privacy to your panel systems. With a wide range of low-pressure finishes, they can be attached between panels or at the end of a configuration to clearly define workspace boundaries.

Created under engineering and technology principles, Optimus has full voice and data driving capacity, as well as electrification through harnesses, passing worksurface level and the lower metal duct.

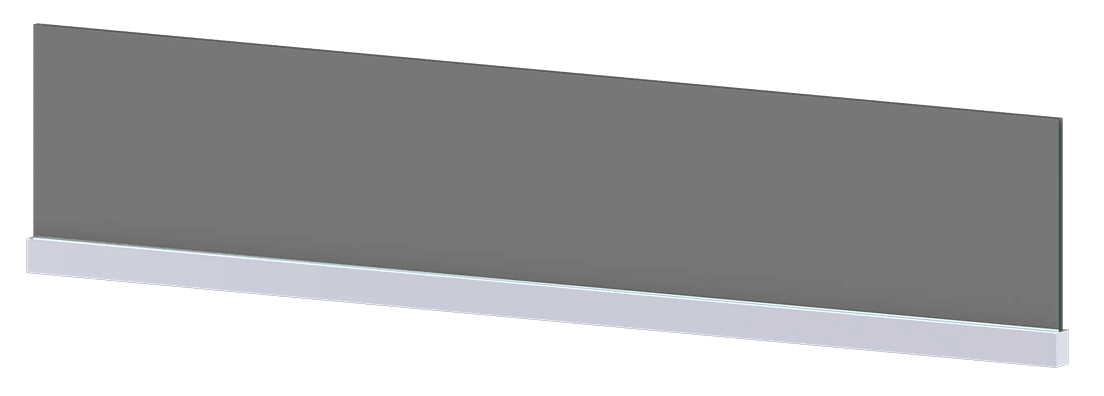

Sleek glass partition that sits atop the panel system, creating a continuous visual divide across multiple panels while preserving light and openness. Ideal for contemporary offices that need privacy without closing off the space.

Available finishes: clear, frosted, coconut white, smoked.
